09103346 PISTON KIT REPLICA Ø 77.00 B

Name: VERTEX PISTON KIT REPLICA Ø 77.00 B
Brand: VERTEX
SKU: 09103346
Price: 166.98 GBP
Availability: InStock

Fits 2 bikes

RRP £208.73 Save 20%

£166.98

incl. VAT

In stock — ships in 3 working days

Usually dispatched within 3 working days.

Part #: 09103346

Authorised stockist

VERTEX

14-day returns

Easy & hassle-free

Secure checkout

256-bit encryption

§ 02 / About this part

What it is

The VERTEX PISTON KIT REPLICA Ø 77.00 B, motocross part. Stocked by Iron Offroad, the UK MX hard parts specialist.

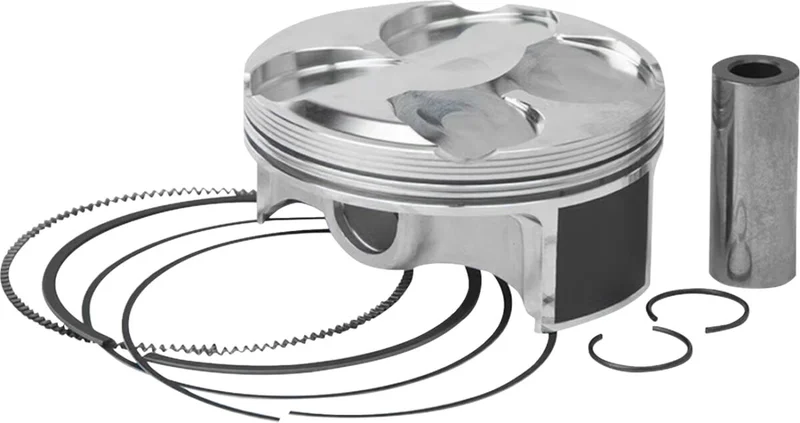

This B-size replica piston kit cross-references with OEM 1SM-116A0-01-00. It sits in the top-end and includes the piston, rings, pin, and circlips. The B-sizing is designed for cylinders that have seen some use, ensuring the correct clearance is maintained. This kit is essential for restoring the factory performance of your bike. Measure your bore with a micrometer to confirm the 77.00mm B-fitment is correct. Check the ring end gaps and ensure the oil rings are correctly layered. Always follow the specific torque sequence for the cylinder head during assembly.

§ 03 / Specs

The numbers

Brand: VERTEX
Part number: 09103346
Weight: 0.25 kg
OEM cross-refs: 1SM-116A0-01-00
VAT: 20%

// Fitment

Will it fit your bike?

Fits 2 models · 2 year-bands

* Fitment data is provided as a guide. Verify compatibility against the bike's owner's manual or service handbook before ordering. Iron Offroad accepts no liability for incorrect application. Full terms and conditions apply.
