§ 01 / Part
09230138 CONNECTING ROD KIT
incl. VAT
Usually dispatched within 3 working days.
Authorised stockist
PROX
14-day returns
Easy & hassle-free
Secure checkout
256-bit encryption
§ 02 / About this part
What it is

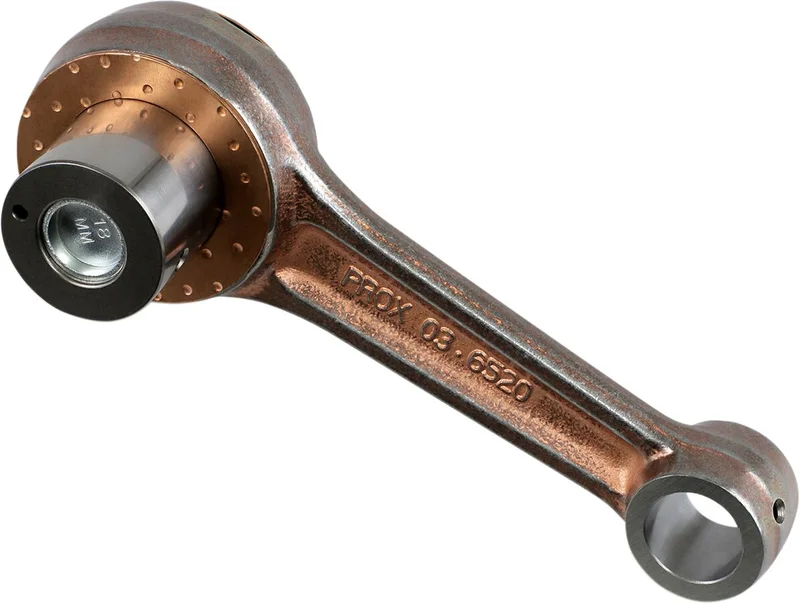

The PROX CONNECTING ROD KIT, bottom end. Stocked by Iron Offroad, the UK MX hard parts specialist.
This kit manages the critical connection in your bottom-end. It links the piston to the crankshaft, converting every stroke into drive. Big-end bearings eventually develop play, or the rod fatigues from high-RPM stress. Replacing the rod is standard practice during a full rebuild to avoid catastrophic failure. Each kit includes the rod, big-end pin, bearing, and thrust washers. These components match OEM specifications for a direct fit. You will need a hydraulic press and truing stand for installation. Precision is vital. Ensure your crank webs are perfectly aligned after assembly to prevent vibration through the bike.
§ 03 / Specs
The numbers
- Brand
- PROX
- Part number
- 09230138
- Category
- Bottom End
- Weight
- 0.88 kg
- VAT
- 20%
// Fitment
Will it fit your bike?
Fits 20 models · 20 year-bands
Beta 3 models
KTM 17 models
- EXC 250 2001–2006
- EXC 250 RACING 2002–2006
- EXC 400 2000–2003
- EXC 400 RACING 2003–2007
- EXC 450 RACING 2003–2007
- EXC 520 2000–2002
- EXC 520 RACING 2000–2002
- EXC 525 RACING 2003–2007
- EXC-G 525 RACING 2003–2006
- SMR 525 2004–2005
- SX 400 2000–2002
- SX 520 2000–2002
- SX 520 RACING 2000–2002
- SX 525 2003–2006
- SX 525 RACING 2003–2006
- XC 450 ATV 2008–2009
- XC 525 ATV 2008–2012
No matches. Try a different make or model.
* Fitment data is provided as a guide. Verify compatibility against the bike's owner's manual or service handbook before ordering. Iron Offroad accepts no liability for incorrect application. Full terms and conditions apply.
