§ 01 / Part
09230197 CONNECTING ROD KIT
incl. VAT
Usually dispatched within 3 working days.
Authorised stockist
HOT RODS
14-day returns
Easy & hassle-free
Secure checkout
256-bit encryption
§ 02 / About this part
What it is

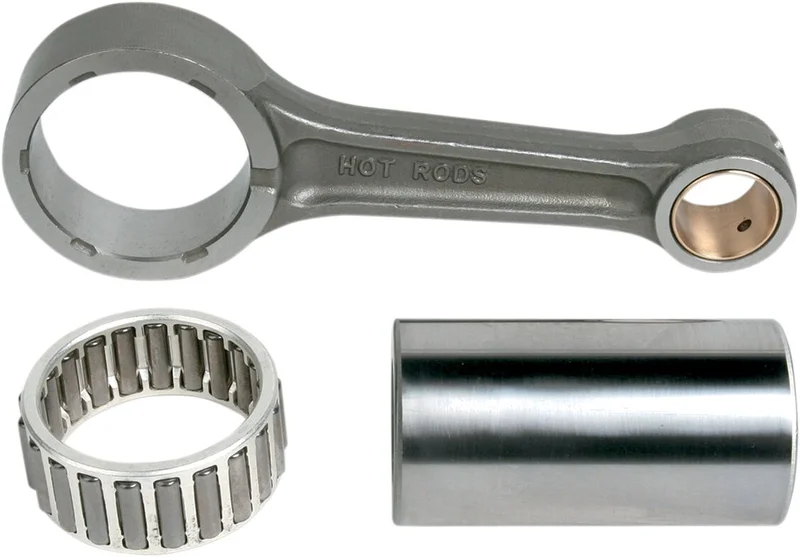

The HOT RODS CONNECTING ROD KIT, bottom end. Stocked by Iron Offroad, the UK MX hard parts specialist.
Every stroke of your engine puts immense stress on this component. It sits at the heart of the bottom-end, connecting the piston to the crank. Replacement is essential if you detect vertical play at the big-end or as part of a preventative rebuild. This specific kit cross-references with OEM part number 1S3-11651-00-00. Each kit contains the rod, big-end pin, bearing, and necessary washers. You will need a hydraulic press and dial indicators to true the crank after assembly. Neglecting this part often leads to catastrophic engine failure.
§ 03 / Specs
The numbers
- Brand
- HOT RODS
- Part number
- 09230197
- Category
- Bottom End
- Weight
- 1.12 kg
- OEM cross-refs
- 1S3-11651-00-00
- VAT
- 20%
// Fitment
Will it fit your bike?
Fits 21 models · 27 year-bands
Yamaha 27 models
- YFM 700 2013–2014
- YFM 700 FG 4X4 2008–2013
- YFM 700 FGH 4X4 2008–2013
- YFM 700 FGP 4X4 2007–2013
- YFM 700 FGP DU 4X4 2007–2010
- YFM 700 FGP OH 4X4 2007
- YFM 700 FGP SE 4X4 2007
- YFM 700 FGP SE 4X4 2009–2010
- YFM 700 FGP SE 4X4 2012–2013
- YFM 700 FGP SP 4X4 2008
- YFM 700 FGP SP 4X4 2011
- YFM 700 FGPH 4X4 2007–2013
- YFM 700 FWAN 4X4 2012–2013
- YFM 700 R 2006–2014
- YFM 700 RSE 2007–2014
- YFM 700 RSE2 2007–2008
- YFM 700 RSP 2006
- YFM 700 RYR 2007
- YXR 700 F 4X4 2008–2013
- YXR 700 F DU 4X4 2008–2009
- YXR 700 F SE 4X4 2008
- YXR 700 F SE 4X4 2012–2013
- YXR 700 F SP 4X4 2008–2009
- YXR 700 F SP 4X4 2011–2013
- YXR 700 F SP2 4X4 2008–2009
- YXR 700 FH 4X4 2008–2009
- YXR 700 FH 4X4 2011–2013
No matches. Try a different make or model.
* Fitment data is provided as a guide. Verify compatibility against the bike's owner's manual or service handbook before ordering. Iron Offroad accepts no liability for incorrect application. Full terms and conditions apply.
